ultrasonic PVC Cylinder Box plastic PET sealed mailing tubes Pasting Machine
Applications
- Semi automatic plastic mailing tubes Pasting welding Machine ultrasonic plastic cylinder packaging tube bottom sealing machine Round Display Favor Containers,Pvc Round Cylinders Box, Food Safe Tube Packaging box productions. This is a kinds of ultrasonic plastic welding machine
- Application:clear plastic tube containers making machine. Ultrasonic or gluing sealing plastic material like PVC/APET/PETG/PET sheet to make cylinder tube/cylinder container/round container/plastic tubes for packaging candy, gift presents, stationery, earphone mir, headset…
- clear tube packaging machine for welding cylinder tube bottom is applied for welding bottom of Cylinder PVC/APET/PETG/PVC plastic food tubes to maker cylinder container for packaging industries like candy, gift, toys, stionery, umbrelle, fishing tools, crisp food and fashion food, etc.specialized for sealing bottom of plastic cylinder container
Specifications:
- 1. Specailized for the bulk production of PVC,PP,APET,PETG cylinder
- 2. designed with man-machine interface operating system,servomotor drives,
- 3.IC circuit precision control, automatic overload protection system
- 4.Adopting digital switch, 1/100 precision re-set control;
- 5.Adjustable horizontal level, for positioning and control welding horn easily
- 6 work stations and Automatic rotating plates design,
- 7.Ultrasonic welding, firmly welding and no-scratch welding performance,
- 8.Welding cylinders of various Diameter/Height/Length/thickness
- 9.4 Position of welding mould could be adjusted by rotating the screws
tube box bottom
sonic back welding
Reference working video

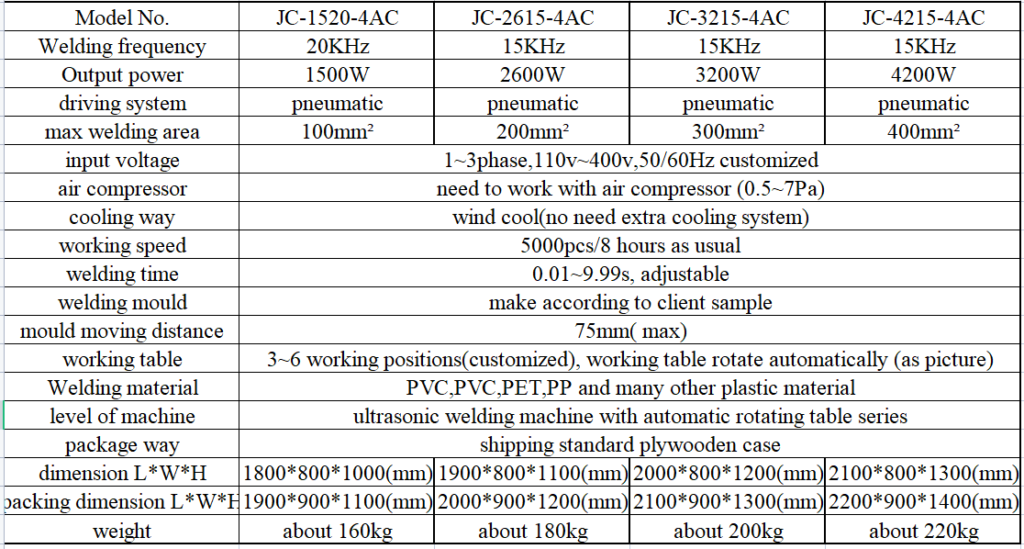

Specifications
hf blister welding mold
other pvc cylinder boxes making machines
Play Video about PET cylinder tube box machine
- auto plastic tubes making machine
- PVC/PET glue sealing machine
- raw material provided in roll
Play Video about acetate cylinder packaging machine
- automatic plastic tubes maker
- ultrasonic pvc welding way
- raw material provide in piece sheet
Play Video about plastic tube box machine
- manual cylinder tube box machine
- double heads working positions
- glue sealing PVC/PET formed lid
kinds of design of ultrasonic plastic welding machine
- standard design ultrasonic welder
- weld head&electric box separated
- PVC, ABS,PETG welding machine
- all-in-one Ultrasonic weld machine
- weld head & electrical box connect
- big side plastic welding equipment
- rotation design ultrasonic welder
- 4~8 working positions as request
- good for pvc tube box bottom weld
- handle design ultrasonic welder
- good for small area welding work
- with 500W ~800W working power
